HARDENED AND TEMPERED STEEL STRIPS

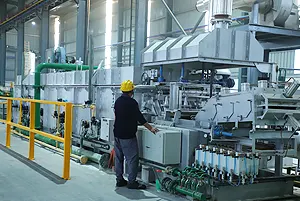

Stelco Limited has become one of the pioneer Manufacturers of Hardened & Tempered Medium & High Carbon Steel Strips with a combined production capacity of about 14000 MT/annum. Our products find wide applications in special industrial uses. Stelco Limited Manufactures Hardened & Tempered Steel Strips, conforming to National and International Standards viz, IS: 2507, DIN 17222. BS: 1449, ASTM A-682. Medium, High Carbon and Low Alloy steel strips, Cold Rolled in-house, are Heat-treated in a continuous lines to develop high hardness, toughness, tensile and spring properties.



Special features:

  • Minimum decarburizationHardened-and-Tempered-Steel
  • Uniform Hardness and Texture
  • High degree of toughness
  • Excellent Spring Properties
  • Precision blanking ability
  • Minimum edge camber
  • Flatness across width
  • No curling



Capacity (Per Annum):

  • Hardened & Tempered Steel Strips 14,000 MT/Annum

The steel grades involved in this range of Hardened and Tempered Steel Strip products are the medium/higher carbon steels and alloy steels, with the overall carbon range being 0.45 – 1.05%. Within this range are closely defined standards such as, in BS 1449 Part 1 1991, CS50, CS60, CS70, CS80, CS95 and 735A51 specifications. Globally, these would be recognized as say AISI grades 1055, 1060, 1070, 1080, 1095 and 6150 and in the relatively recent European specification EN 10132-4 as C55S, C60S, C67S, C75S, C100S, and 51CrV4.

 These steels are most commonly produced with sheared edges and a slightly oxidized blue black (also called blue gray) finish, as these conditions are fully acceptable in engineering component manufacturer. Steel strip with enhanced properties can be produced by edge machining the strip, either before or after the hardening and tempering process. The edge-dressed strip is material where the edge condition from the previous slitting process has been removed, in the Company’s case by a very effective in-line, 2-sided machining process which removes the sheared edges which naturally contain a level of micro-cracks and are also of a relatively rough nature. The dressed edge confers a substantial engineering benefit in improved fatigue-resistance properties, this being of particular value in arduous spring-type applications.

Applications

Flat springs for automobile clutches, Wood working saws, Masonry and Agricultural tools, Gang saws blades, for marble cutting, Wood cutting Band saws, Hand Saws, Cross-cut Saws, Pit Saws, Doctor Blades, for paper industries, Leather splitting knives, Clutch plates, Brake components, Horn diaphragms, Spring & Spring Washers, Textile and Jute mill accessories, Compressor valve plates, Forge Hammer Belts,  Drop pins for textile industries, Spiral coil springs and circular saws, Tubes and non-ferrous metal cutting etc.

Special Requirement:

Stelco Limited can offer a complete range of Hardened & Tempered Steel Strips according to any International Standard. Buyer may furnish the following information to meet the exact requirement.

  • Description of the product.
  • Number of relevant International Standard.
  • Nominal thickness and width in millimeters.
  • Hardness
  • Edge requirement.
  • Required tolerance
    • On thickness
    • On width
    • On edge camber
  • Type of coil and coil internal diameter.
  • Surface condition such as Furnace blue, Polished bright, Deep blue and Golden etc.
  • Special requirement, if any.
